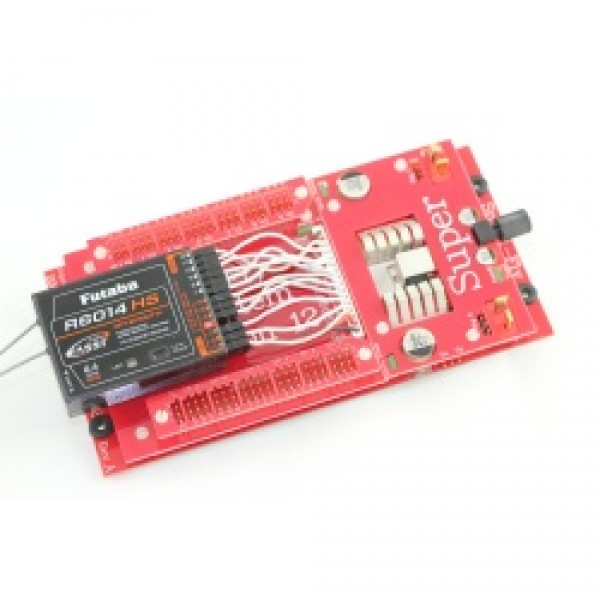

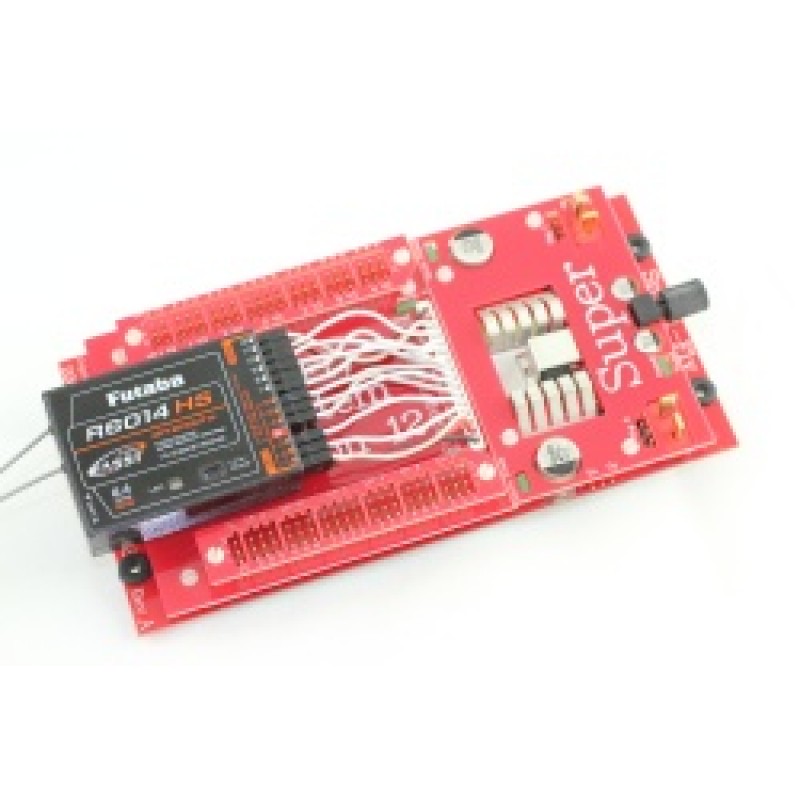

The Smart-Fly PowerSystem Competition 12 is a power distribution unit for up to 120cc aircraft that is light weight and compact. The unit is designed for all receivers, end-loading or top-loading.  The unit is designed to work with Li-ion or Li-poly batteries and has a built-in 7.5 amp servo regulator for the servos and a second 5.0 volt regulator for the receiver. The unit has 12 channels with multiple servo outputs per channel. All signals in and out are RF filtered. The unit also has a built-in Ignition Cutoff and can be order without the fiber-optic receiver, with the unregulated fiber-optic receiver or with the regulated fiber-optic receiver.

• Compatible with All radio systems

• For up to 100cc (IMAC 3D) / 120cc (IMAC only) / 30lb Scale gas aircraft
• Light weight, 3.7oz, 108g and compact, 6.0” x 3.0” design
• For Li-ion or Li-poly batteries
• Battery inputs protected against battery faults, lost cell or short
• Adjustable servo regulator, 5.5V-6.7V, 7.5amps continuous, 20 amps peak
• 12 channels, 10 support 3 servos and 2 support 4 servos
• Filtered and regulated 5.0V power to receiver
• Receivers can be end-loading or top-loading
• Fully buffered and RF filtered signal line for each servo
• Long servo lead line-matching
• Built-in Ignition Cutoff with fiber-optic receiver ordering options
