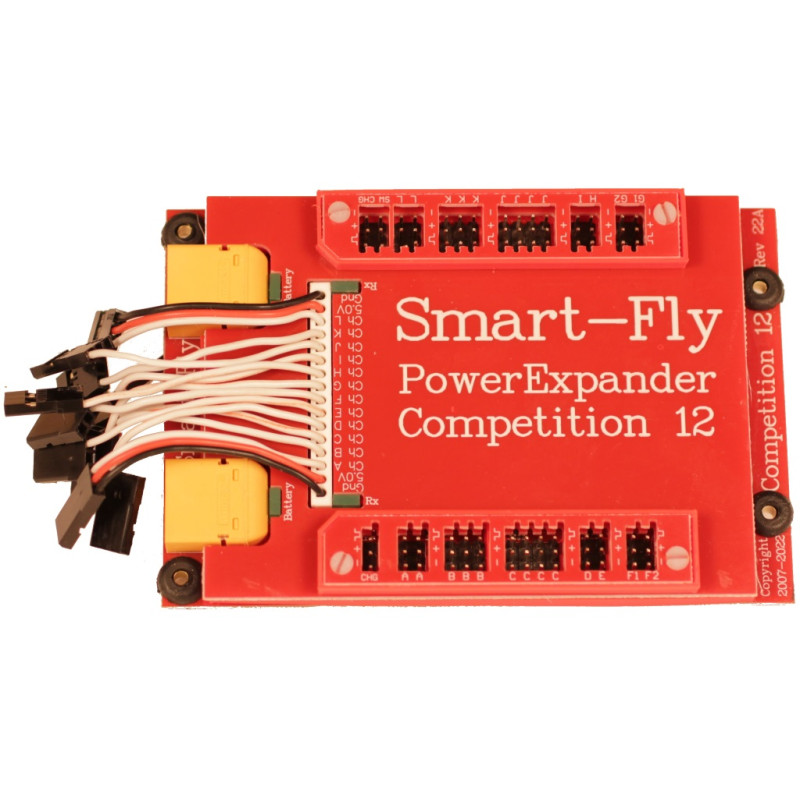

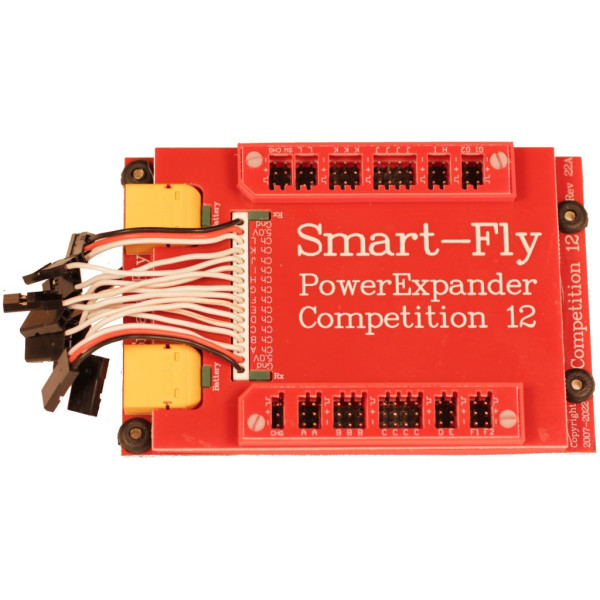

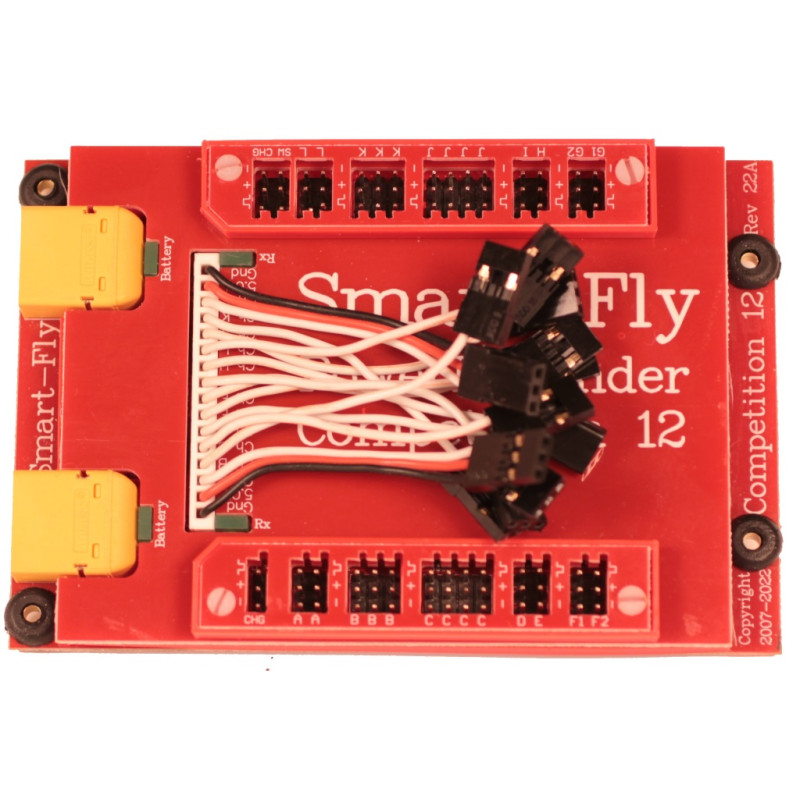

The Smart-Fly PowerExpander Competition 12 provides a power distribution unit for any aircraft that is light weight and compact.  The unit is designed for all receivers, end-loading or top-loading.  The unit is designed to work with 5S NiCd/NiMH, 2S LiFe or 2S Li-ion/poly batteries and has a 5.0 volt regulator for the receiver that delivers filtered, clean power. The unit has LED indicators for servo and receiver power.  All signals, in and out of the unit are buffered and  have RF filtering.

Features:

¨ High-current XT-60 battery connectors (30A sustained, 60A peak)

¨ Battery inputs protected against battery faults, lost cell or short

¨ Uses 5S NiCd/NiMH, 2S LiFe or  2S Li-ion/poly Batteries

¨ Light weight and compact design              2.9 oz (54g), 3.0” x 4.5”,

¨ Recommended for any size plane

¨ Filtered and regulated 5.0V power to receiver

¨ LEDs for servo and receiver power

¨ Fully buffered signal line for each servo

¨ Full RF filtering of all signals in and out of unit

¨ Impedance matching to reduce signal ringing on long servo leads
